DATAKOM DKG-114 Manual and remote start generator control panel

Datakom DATAKOM DKG-114 Manual and remote start generator control panel
Datakom DATAKOM DKG-114 Manual and remote start generator control panel
(0)
$74.00
pcs.

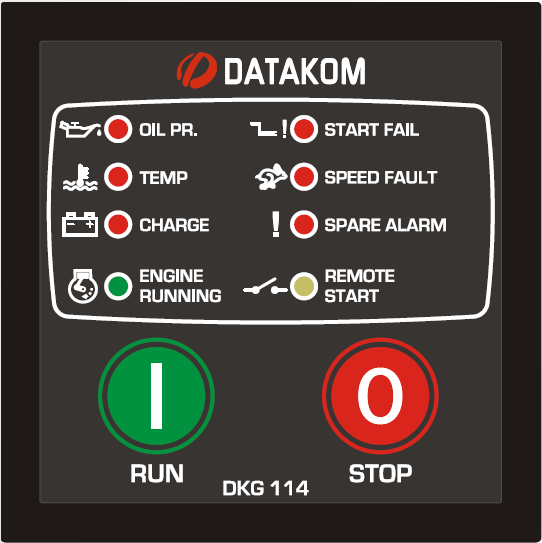

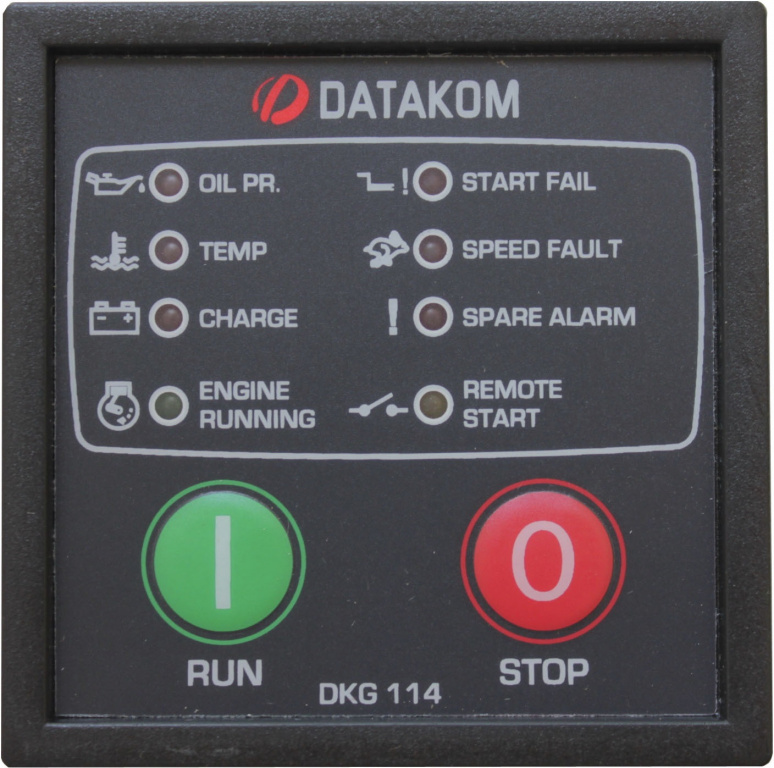

The DATAKOM model DKG-114 is a low cost, microprocessor controlled generator control unit designed to start and stop the genset both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the remote start input signal. In the STOP position, the DC supply is removed from the module, thus zero power consumption is achieved.

Once the engine is running, the device monitors the internal protections and external fault inputs. Only the first occurring alarm will be displayed, disabling further alarms.
If the STOP button is pressed or the REMOTE START signal is removed, the engine will be stopped.

The unit offers jumper selectable operating parameters, which lets is to be used in a large variety of applications. The jumper options select the operating voltage of the unit, the auxiliary relay function, the engine running signal type and the cooldown cycle.

Thanks to the completely sealed structure, IP65 protection degree is achieved from the front panel. The unit works on both 12 Volt and 24 Volt gensets.

FEATURES:
• Both manual and remote controlled engine starting and stopping,
• Automatic shutdown on fault condition,
• Optional cooldown cycle on remote start operation,
• Optional energize to stop or preheat output,
• Survives cranking dropouts,
• High current relay outputs,
• Selectable engine running signal (from genset voltage or charge alternator),
• Delayed overspeed and underspeed alarm,
• Sealed front panel, IP65 protection.
• Plug-in connection system for easy replacement,
• Small dimensions,
• Standard panel dimensions, (72x72mm)

TECHNICAL SPECIFICATIONS:
Generator voltage: 277V-AC (Ph-N)
Generator frequency: 0-200Hz.
DC Supply Range: 9 to 30V-DC.
Cranking dropouts: survives 0V for 100ms.
Current consumption:
    0 ma-DC in OFF mode
    250 mA-DC max. (Relay outputs open)
Total DC Current Output Rating: 10A-DC.
Max. Current for each Terminal: 10A-RMS.
Operating temp: -30°C (-22°F) to 70°C (158°F).
Storage temp: -40°C (-40°F) to 80°C (176°F).
Maximum humidity: 95% non-condensing.
IP Protection: IP65 from front panel, IP30 from the rear.
Dimensions: 72 x 72 x 43mm (WxHxD)
Mounting: Front panel mounted with rear retaining steel spring.
Panel cut-out dimensions: 68 x 68mm.
Weight: 180 g (approx.)
Charge excitation current: 36mA @ 12V-DC, 70mA @ 24V-DC
Charge alternator voltage: min 6 V-DC.
Genset low frequency limit: 30Hz.
Genset high frequency limit: 57Hz.
Frequency error delay: 3 sec.
Preheat timer: 10 or 30 seconds, jumper selectable.
Number of starts: 3
Start duration: 6 sec.
Wait between starts: 10 sec.
Cooldown duration: 2 min.
Stop duration: 30 sec.
Alarm duration: 1 minute.
Protection delay: 10 sec.
Case Material: Flame Retardant High Temperature ABS (UL94-V0, 110°C)


WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
