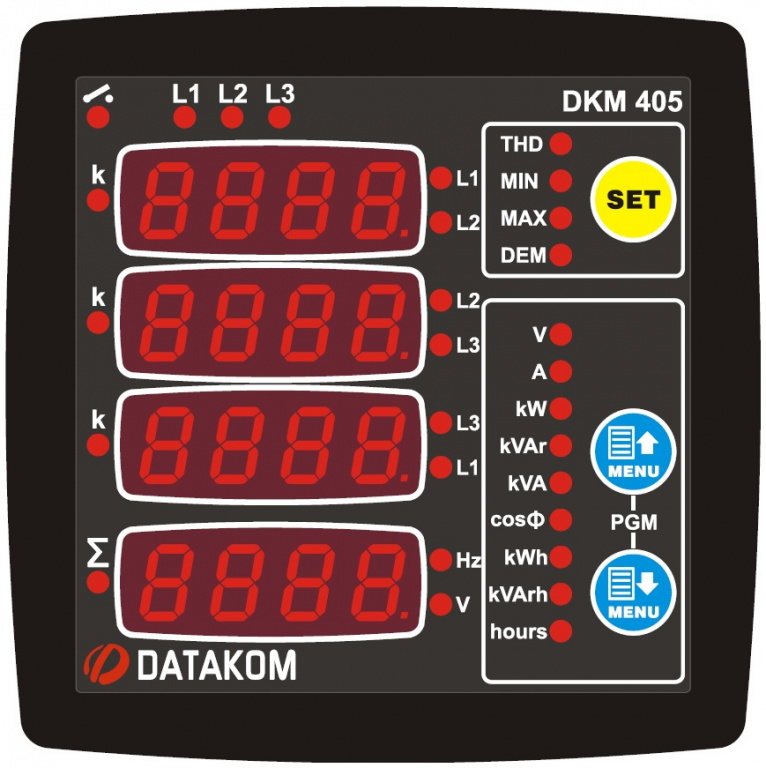

DATAKOM DKM-405-S analyser, 96x96mm, THD

Datakom DATAKOM DKM-405-S analyser, 96x96mm, THD
Datakom DATAKOM DKM-405-S analyser, 96x96mm, THD
(0)
$82.00
pcs.

▼ DATAKOM DKM-405 Datasheet
▼ DATAKOM DKM-405 INSTELLATION MANUAL
▼ DATAKOM DKM-405 User manual v1-5

The DKM-405 is a low cost precision instrument designed to display various AC parameters in a 3-phase distribution panel.
The unit features a 32-bir ARM based microprocessor. Thanks to its sampling rate of 4096s/s it reaches 0.5% precision range.
The standard unit is designed for 230/400V network. A different version is available for 120/208V systems.
The harmonic analysis is available for up to 31 harmonics. THD values of both voltage and current inputs are available.

FEATURES:
• True RMS measurements
• Total harmonic distortion display
• Max demand display
• Energy pulse output capability
• Optically isolated, configurable digital input
• Active-reactive power counters
• Hour counter
• Voltage transformer ratio for MV applications
• Front panel programming
• Reduced panel depth
• Wide operating temperature range
• Sealed front panel (IP54)
• Plug-in connection system

TECHNICAL SPECIFICATIONS:
Power Supply Input: 170 - 275VAC, 50 - 60Hz nominal (+- 10%)
Different AC supply voltages available.
Measurement Input Range:
Voltage inputs: 10 - 300 V AC (L-N)
20 - 520 V AC (L-L)
Current inputs: 0.2 – 5.5 A AC
Frequency: 30 - 100 Hz
Accuracy:
Voltage: 0.5%+1digit
Current: 0.5%+1 digit
Frequency: 0.5%+1 digit
Power(kW,kVAr): 1.0%+2digit
Power factor: 2.0%+2digit
Measurement Range:
CT range: 5/5A to 5000/5A
VT range: 0.1/1 to 200.0/1
kW range: 0.1 kW to 6.5 MW
Power Consumption: < 4 VA
Voltage burden: < 0.1VA per phase
Current burden: < 1VA per phase
Relay Outputs: 5A @ 250VAC
Digital Inputs:
Active level: 5 to 30V-DC or AC
Min pulse duration: 250ms.
Isolation: 1000V AC, 1 minute
Operating Temperature: -20'C to +80'C (-4 to +176'F).
Maximum humidity: 95% non-condensing.
Degree of Protection: IP 54 (Front Panel) , IP 30 (Back panel)
Enclosure: Non-flammable, ROHS compliant, ABS/PC (UL94-V0)
Installation: Flush mounting with rear retaining brackets
Dimensions: 102x102x53mm (WxHxD)
Panel Cutout: 92x92mm
Weight: 200 gr
EU Directives Conformity:
2006/95/EC (low voltage)
2004/108/EC (EMC)
Norms of reference:
EN 61010 (safety requirements)
EN 61326 (EMC requirements)

WE DO NOT SHIP THIS PRODUCT TO USA AND CANADA
