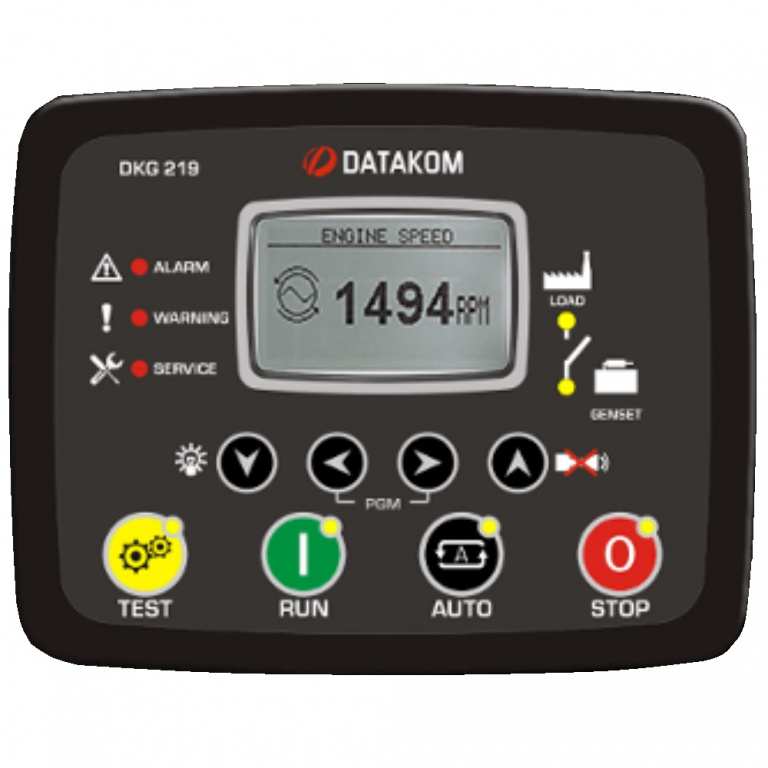

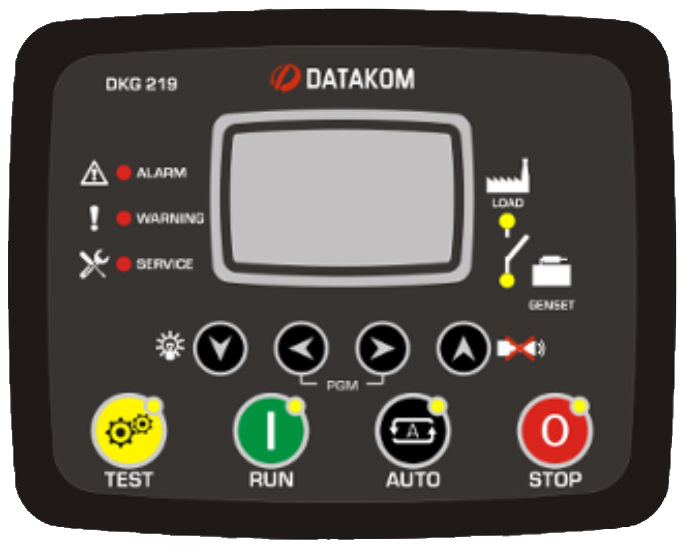

DATAKOM DKG-219 Manual and Remote Start Controller

Datakom DATAKOM DKG-219 Manual and Remote Start Controller
Datakom DATAKOM DKG-219 Manual and Remote Start Controller
(0)
$210.00
pcs.

The DATAKOM DKG-219 is a comprehensive generator control controller designed to start and stop the generating set both manually and remotely. The manual control is made using the pushbuttons on the front panel. The remote control is made via the REMOTE START input signal.
The controlleris designed in a zero power consumption at restructure and draws zero current in off mode.
The RUN, STOP and AUTO pushbuttons select the operating mode. Other buttons select the display parameter scroll, alarm mute and lamp test functions.
The DKG-219 provides a comprehensive set of digitally adjustable timers, threshold levels, input and output configurations and operating sequences. The unauthorized access to program parameters is prevented by a 3 level password protection. All programs may be modified via front panel pushbuttons, and do not require an external unit.

FEATURES:
• True RMS measurements
• 100 event logs with full snapshot
• Field adjustable parameters
• Logic level serial port, free monitoring SW
• GSM and PSTN modem support
• GSM SMS message sending on fault
• MODBUS communication
• Multiple language support
• Customer logo display capability
• 16 Amp contactor outputs
• 1 Amp DC semi-conductor outputs
• Configurable analogue inputs: 3
• Configurable digital inputs: 5
• Configurable digital output: 1
• Plug-in connection system


WE DO NOT SHIP THIS DATAKOM PRODUCT TO USA AND CANADA
